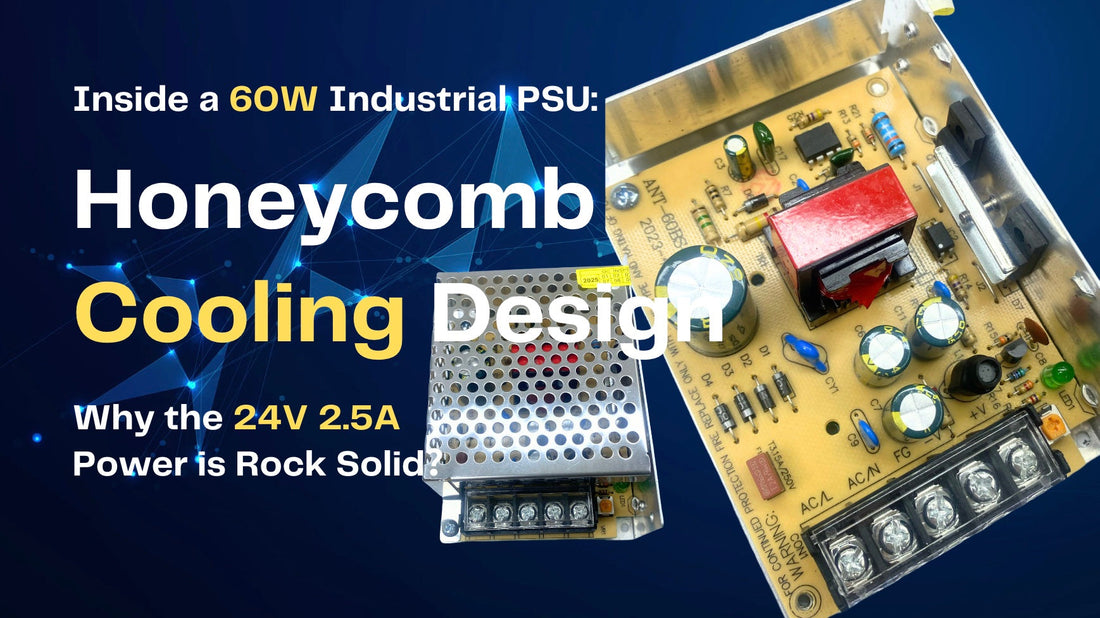

Inside a 60W Industrial PSU: Honeycomb Cooling Design & why 24V 2.5A Stability Analysis
In the world of industrial automation, the power supply is the "heart" of the system. Today, we are conducting a deep-dive teardown of a 60W compact industrial PSU. This unit is a staple in the industry, known for its "rock-solid" 24V 2.5A output. Let’s analyze the engineering that makes this reliability possible.
1. 60W Industrial PSU Thermal Management: The Honeycomb Advantage
The exterior features an L-shaped aluminum base and a full-top honeycomb perforated cover. In fanless industrial enclosures, heat dissipation is achieved through large-aperture air convection. This passive cooling design ensures the internal components stay within safe operating temperatures without the noise or failure risks associated with mechanical fans.
2. 60W Industrial PSU Technical Specifications at a Glance
| Feature | Specification / Detail |
| Rated Power | 60W |
| Output Voltage | 24V DC (Adjustable via Potentiometer) |
| Output Current | 2.5A |
| Cooling Type | Passive Honeycomb Convection |
| Certifications | CE, UL Certified |
| Circuit Layout | Efficiency-Optimized "U-Loop" |
| Safety Features | Surge Protection & Galvanic Isolation |
3. 60W Industrial PSU Internal Component Breakdown
- Input Protection: A brown square surge protection fuse acts as the first line of defense against high-voltage grid pulses.Rectification: Four black cylindrical rectifier diodes convert AC to pulsating DC, followed by a high-voltage filter capacitor for signal smoothing.
- Isolation: A high-frequency transformer (wrapped in red tape) provides galvanic isolation, physically separating high-voltage and low-voltage sections to ensure user safety.
- Output Refinement: Three green vertical filter capacitors eliminate residual ripple, while dispersed rectifiers prevent heat buildup.
4. The "U-Loop" Design: Space & Wiring Efficiency
The internal layout follows a U-loop circuit path: current enters the input terminals, moves up through the protection and transformation stages, and loops back down to the output terminals.
This design maximizes space efficiency and allows for single-sided wiring. In cramped control cabinets, this allows technicians to manage all cables from one side, significantly improving installation speed and neatness.
5. Frequently Asked Questions (Q&A)
Q1: Why use a honeycomb design instead of a solid metal case?
A: Industrial PSUs often operate in sealed environments. The honeycomb pattern provides the maximum open area for air convection while maintaining structural integrity and electromagnetic shielding.
Q2: What is the benefit of "Galvanic Isolation" in this PSU?
A: It uses the transformer to transfer energy without a direct electrical path between the input and output. This protects the connected equipment (and people) from high-voltage faults on the primary side.
Q3: Can the output voltage be adjusted?
A: Yes. There is a built-in orange potentiometer (fine-tuning knob) that allows users to calibrate the 24V output to account for voltage drops in long cable runs.
Q4: Why are the output rectifiers dispersed across the PCB?
A: By spreading these components out, the manufacturer prevents "heat spots." This passive thermal management extends the lifespan of the capacitors and other heat-sensitive parts.
6. Recommended Applications
-
Industrial Automation: PLC expansion and sensor power.
- Commercial Lighting: High-brightness lightboxes and displays in confined spaces.
- Security & Precision Gear: Surveillance systems requiring low-noise, flicker-free power.
Conclusion:
The combination of the U-loop layout and honeycomb cooling proves that this 60W PSU is engineered for durability rather than just cost. For those requiring a "set and forget" power solution, this 24V 2.5A unit remains a top-tier choice.
Watch the Full Teardown Video: If you want to get a close-up look at these internal details and the actual teardown process, feel free to head over to my YouTube channel and watch the full video
Inside a 60W Industrial PSU: Honeycomb Cooling Design and Why the 24V 2.5A Power is Rock Solid.
