Slim Power, Big Impact: The Ultimate Ultra-Slim 25W LED Power Supply Guide

In modern lighting design, space is the ultimate luxury. Finding a reliable ultra-slim 25W LED power supply is the key to maintaining a sleek aesthetic without compromising performance. Whether you are engineering ultra-thin advertising lightboxes or high-end linear lighting, our compact power solutions ensure your project stays thin, bright, and stable.

Today, we are diving deep into the S-25-12 Open-Frame Power Supply—a 12V 2A, 25W powerhouse specifically engineered for the "compact" demands of the LED industry.

1. Exterior Design: The Ultra-Slim 25W LED Power Supply Revolution

The most striking feature of the Slim 25W LED driver is its ultra-slim, linear form factor. For engineers struggling with limited space, this design is a game-changer.

• Measured Dimensions: 9cm (L) x 3cm (W) x 2cm (H).
• Industry Focus: Specifically designed to fit into narrow light channels and ultra-thin frames where standard PSUs simply cannot fit.

2. Full Aluminum Casing: Ultra-Slim 25W LED Power Supply Cooling

Heat is the enemy of LED longevity. To combat this, the Slim 25W LED driver features a high-texture, industrial-grade aluminum base that clients value highly for its durability and cooling efficiency.

• Reinforced Fins: The aluminum profile includes longitudinal stripes (fins) that significantly increase the surface area for rapid heat dissipation.
• Conductive Cooling: Pre-drilled standard mounting holes allow you to lock the PSU directly onto a metal substrate. This enables conductive cooling, ensuring stable 24/7 operation even at a 100% full load.

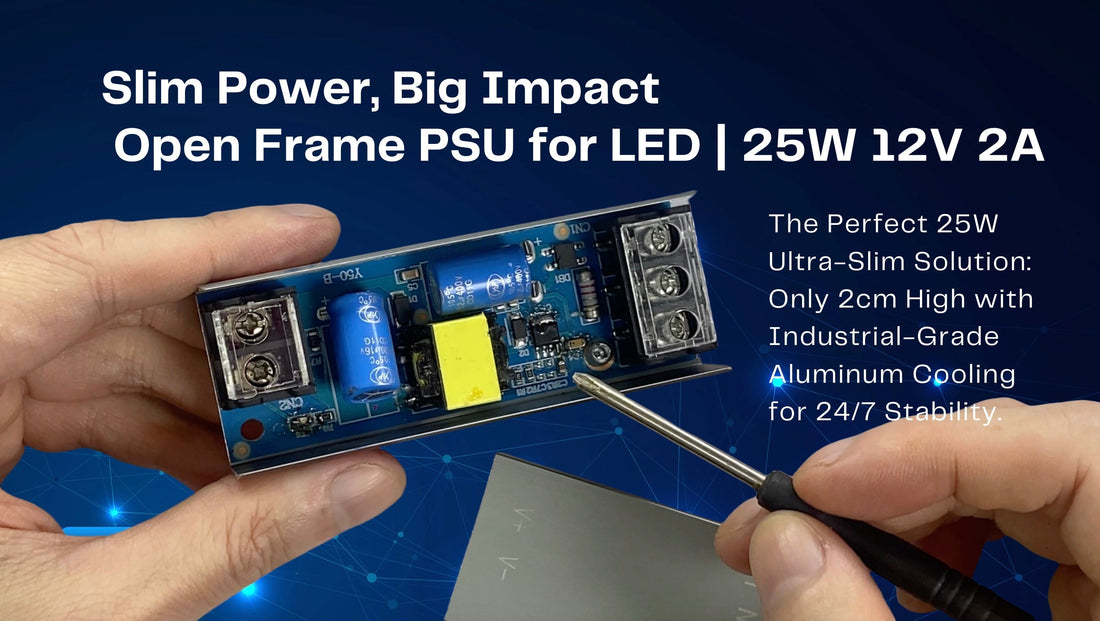

3. Inside the Ultra-Slim 25W LED Power: Professional-Grade Teardown

Removing the cover reveals a clean, professional layout. Let’s break down the components from input to output:

Input & Protection

• AC Input Section: Features a high-spec bridge rectifier and a dedicated fuse circuit. These components filter grid fluctuations and provide a safety barrier for your expensive LED equipment.

Space-Saving Innovation

• Horizontal High-Voltage Capacitor: Notice the blue capacitor "lying down" in the center. We chose a horizontal mounting specifically to compress the total thickness to 2cm, meeting the strict requirements of slim design projects.

Stability & Isolation

• The Heart (Yellow Transformer): This high-frequency transformer converts high voltage to low voltage while providing critical electrical isolation between the input and output stages for user safety.
• Feedback System: A real-time monitoring circuit fine-tunes the voltage. Even if your external power grid is unstable, the output remains locked at a precise 12V.

Flicker-Free Output

• Vertical Output Capacitor: The prominent blue capacitor on the left acts as the final stage filter. It drastically reduces current ripple, ensuring your LED lights are steady and completely flicker-free.

4. Technical Specifications at a Glance

5. Applications & Customization

This ultra-compact design, combined with industrial-grade components, makes it the ideal power solution for:

• Narrow LED light channels
• Retail signage and ultra-thin lightboxes
• Embedded smart home lighting
• Compact industrial control panels

Watch the Full Teardown & Demo Video:

If you want to see this Slim 25W LED driver PSU in action and get a closer look at the internal craftsmanship, check out my full video on YouTube:Slim Power, Big Impact: The Ultimate Ultra-Slim 25W LED Power Supply Guide

Need a Custom Power Solution?

To discuss specific industrial requirements or initiate a custom power solution, please visit our Custom&OEM Page

Whether you are looking for bulk purchasing for a large-scale project or need specific customization for your hardware, we are here to help.

Contact us today for samples or technical inquiries. Let’s power your next LED project with precision and reliability.
